KW3A-16Z4-A200

Current Rating – 16A

Lever Type- Roller Lever

Cross with Honeywell – V15-T16-CZ200-A05

Cross with Cherry – D453Q1RA

Datasheet – KW3A-16Z4-A200

Chat with us on WhatsApp We reply quickly! Contact Us
Related Products

Product Description

KW3A Micro switch series

Characteristics Wide range of forces.
  Long mechanical and electrical life
  High Degrees of temperature
  Quick connect, solder and PCB terminal
Rating 250VAC25(10)A, 25(4)A,21(4)A,
  16(4)A,10(3)A,5(2)A,1(0.3)A
  250VAC/16(8)A,10(6)A TUV
  125VAC 22A,16A,10A,5A,1A
  30VDC 0.1A,1A
  10T105,T125,T150,T200
Dimensions(mm) 27.8×15.9×10.3
Actuator Plunger
  Variety of levers

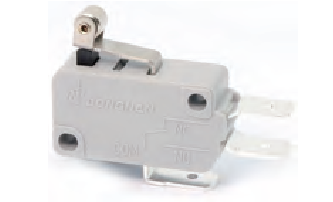

  Roller lever
Approvals UL,CUL,VDE,TUV,SEMKO,CE,CQC,EK
  Brand: Dongnan- China

Datasheet – KW3A
