KW4AS Series

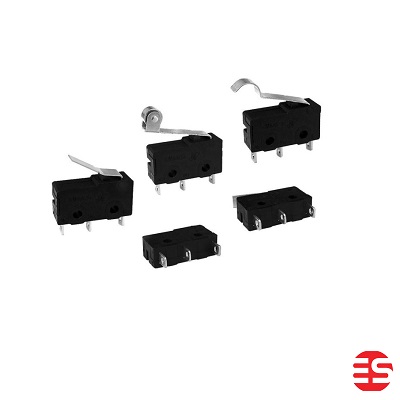

KW4A(S) Micro switch series
| Characteristics | Long life, high reliability. |
| A Variety of contact terminals | |
| A Varity of levers | |
| Rating | 250VAC 10A,5A,3A,1A,0.1A |
| 125VAC 10.1A, 5A,3A,1A,0.1A | |
| 10T85,T125 | |
| Dimensions(mm) | 19.8×10.8×6.4 |
| Actuator | Plunger |
| Variety of levers | |
| Roller lever | |
| Approvals | UL,CUL,VDE,TUV,SEMKO,CE,CQC,EK |
| Brand: Dongnan- China | |
| Download Datasheet | KW4AS_pdf |
Description
KW4AS Series
KW4AS Series Features:
| Temperature Duration | T125(UL) |
| Electronic Rating | 10A/250VAC |
| Contact Resistance | 50m Max |
| Insulation | 1500M min |
| Dievotage | 1500VDC |
| Operation Force | 50~300gf |
| Mechanical Life | 1,000,000 times |
| Electric Life | 10,000 times |
