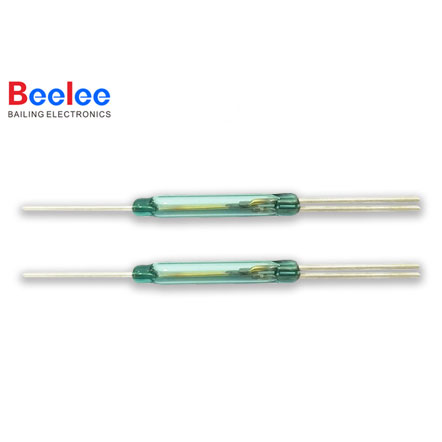

14mm Reed Switch SDPT
Brand:
- Ideal for ATE switching and proximity sensors.
- Contact layers: Ruthenium on gold.
- Superior glass-to-metal seal and blade alignment.
- Excellent life expectancy and reliability.
- RoHS Compliant.
Description
14mm SPDT Reed Switch Introduction
14mm SPDT Reed Switch is Micro changeover switch hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open and anormally closed contact. The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Function
- Ideal for ATE switching and proximity sensors.
- Contact layers: Ruthenium on gold.
- Superior glass-to-metal seal and blade alignment.
- Excellent life expectancy and reliability.
- RoHS Compliant.
Electrical Characteristics
| Contact Style | A |
| Max Power | 4W |
| Max Switch Voltage | 60VDC/VAC |
| Resistance to high pressure | 60VDC/VAC |
| Max Switch Current | 0.25A |
| Max Load Current | 0.5A |
| Max Contact Resistance | 115ohm |
| Min Insulation Resistance | 2 x 107/ 1 x 109ohm |
| Action Time | 0.25ms |
| Bounce Time | 0.05ms |
| Release Time | |
| Response Frequency | 3K Hz |
| Max Working Frequency | |
| Sensitive Value | 10-25AT |
| Minimum Reset min value | 5FT |
| Max Contact Capacitance | 2 OPF |
| Electrical Life | 5 x 106(50mV,10mA) |
| Load | |
| Test Coil Number | 5FT |
| Minimum Reset min value | 5000 |
| Test Coil Resistance | 600ohm |
Welding Characteristics
Manual welding: 3300C±100C,2-3s
Application
- Automation Devices
- Home Appliances
- Auto Industry
- Communication
- Medical
