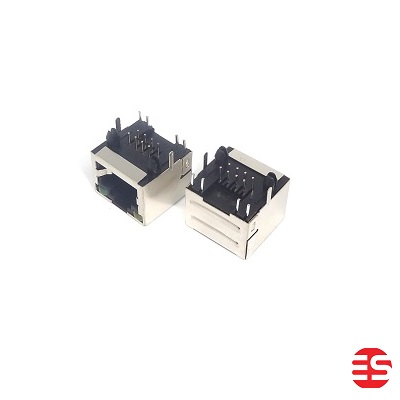

RJ45 LED COPPER H type-0393
Specification
| Temprature Range | -40 ̴ +70°c |
| Voltage Rating | 125 V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥500mΩ |
| Dielectric Strength | 1000v AC/(50Hz)/Min |
| Mating and Unmating Force | 3 ̴ 20N |
| Durability | 750 Cycles Min |
| Materials | |
| Housing | PA46/PBT UL94V-0 |
| Contact | Phosphor Bronze 0.46mm |
| Plating | Gold Plating Over Nickel |
| Shield | Copper Alloy t=0.2mm Plating Nickel |
know more about RJ45 LED COPPER H type (0393)
Description
RJ45 LED COPPER H type-0393
RJ45 LED COPPER H type-0393 Dimensions:
