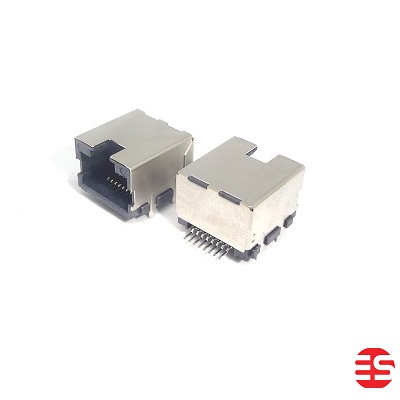

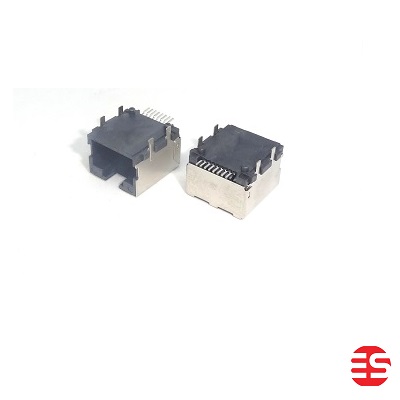

RJ45 8P8C SMT 1*1 PORT LCP BLACK-1174
Specification
| Temprature Range | -40 ̴ +70°c |
| Voltage Rating | 125 V |
| Current Rating | 1.5A |
| Contact Resistance | ≤45mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1000v AC/(50Hz)/Min |
| Mating Force | 22N/2.27KG Max |
| Extraction Force | 22N/2.27KG Max |
| Materials | |
| Housing | Thermoplastic Plastics |
| Contact | Copper Alloy :
Au Plated On Contact Area Tin Plating on solder tail Nickel under plating over all |
| Shell | Copper Alloy :
Nickel plating over all |
Know more about RJ45 8P8C SMT 1*1 PORT LCP BLACK -1174
Description
RJ45 8P8C SMT 1*1 PORT LCP BLACK-1174
RJ45 8P8C SMT 1*1 PORT LCP BLACK-1174 Dimensions:
