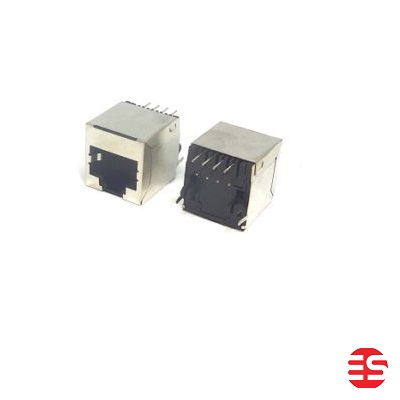

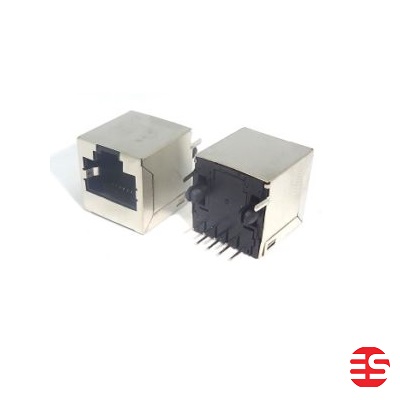

RJ45 180° H type-0319
Specification
| Temprature Range | -40 ̴ +70°c |
| Voltage Rating | 125v |
| Current Rating | 1.5A |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥500mΩ |
| Dielectric Strength | 1000v AC/(50Hz)/Min |
| Mating and Unmating Force | 3 ̴ 20N |
| Durability | 750 Cycles Min |
| Materials | |
| Housing | Glass Filled Polyster (UL94v-0) |
| Contact | Phosphor Bronze 0.46 mm |
| Plating | Gold Plating Over Nickel |
| Shield | Copper alloy Plated Nickel |
Know more about RJ45 180° H type
Description
RJ45 180° H type-0319
RJ45 180° H type-0319 Dimensions:
