MDTS-10 DIP Switch
MDTS-10 Switch Characteristics:
| Service Life | 1000 operations per switch |
| Operation Force | 1000gf max. |
| Stroke | 0.6mm |
| Operation Temp | Operating -30◦C to +85◦C, Storage -40◦C to +85◦C |
| Insulation resistance | 100 M min(At 100 VDC) |
| Contact Resistance | 100mΩmax. at initial |
| Dielectric strength | 250 VAC, 50/60Hz for 1 minute |
| Switching Capacity | 1mA to 25mA /24 VDC |
| Circuit | Single pole single throw |
Description

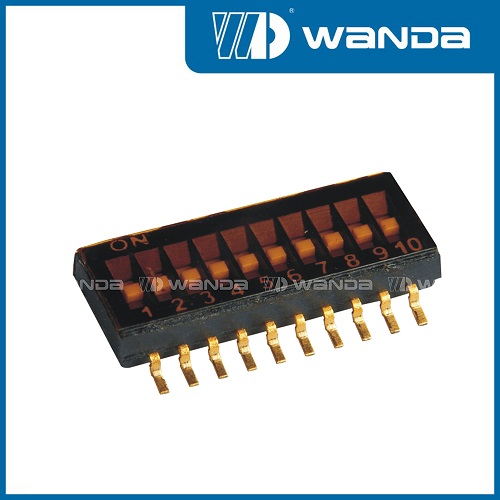

MDTS-10 Dip Switch

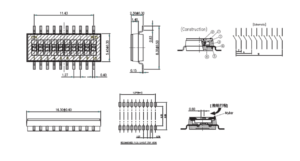

MDTS-10 Dip Switch Dimension
Wanda is a manufacturer of switch components for industrial automation for over 30 years.
Wanda offers different types of switch like DIP Switches , Rotary Switches , Mini Rotary Switches , Mini Slide Switches and Coded Switches.
