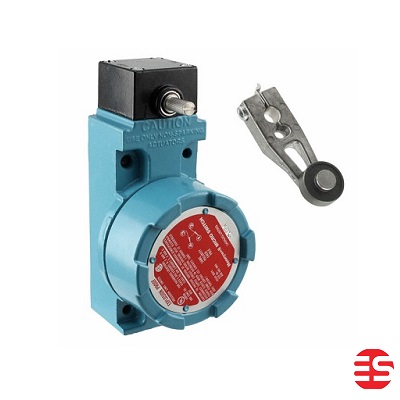

LSXA3K
Technical Specifications :
| Approvals | Div 1 & 2, Class I Groups B, C, and D; Div 1 & 2 Class II, Groups E, F, & G |
| Series Name | LSX |
| Operating Force (OF) | 0,45 Nm [4 in lb] max. |
| Differential Travel (DT) | 5° max. |
| Product Type | MICRO SWITCH Weather-Sealed, Explosion-Proof Limit Switches |
| Agency Approvals and Standards | UL, CSA |
| Availability | Global |
| Pretravel (PT) | 15° max. |
| Overtravel (OT) | 60° min. |
| Actuator | Side Rotary |
Description
LSXA3K
LSXA3K Features
- Sealing – IP67; NEMA 1, 3, 4, 6, and 13
- Tracking interchangeability with MICRO SWITCH ML-E1 and HDLS
- Variety of heads and non-sparking actuators
- Field adjustability matches switch to application
- Momentary, maintained, sequential, or center neutral action
- 10 A continuous carry electrical rating
- Choice of silver or gold contacts
- 1/2 or 3/4 inch conduit opening
- UL, CSA approvals
- Internal grounding screw
Applications
- Control valves and actuators
- Petroleum plants
- Chemical plants
- Waste treatment
- Hazardous waste handling
