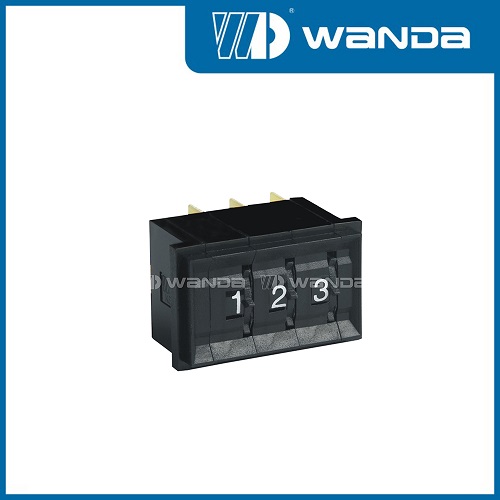

KBP2 Switch
| Switching Capicity | 1mA to 0.1A/28 VDC(resistive load) |
| Contact Resistance | 200mΩ Max |
| Insulation Resistance | 10mΩ min.(At 250 VDC) Between non connected terminals
100 mΩ (At 250 VDC) Between each terminal and noncurrent-carrying part |
| Dielectric strength | 250 VAC,50/60Hz for 1 minute between non connected terminals
1000 VAC,50/60Hz for 1 minute between each terminal and noncurrent-carrying part |
| Operating Force | 450g max |
| Vibration | 10 to 55Hz, 1.5mm double amplitude |
| Shock | 490m/s² (approx.50g’s) |
| Ambient Temperature | Operating -10 to +65°C; Storage -20 to +80°C |
| Humidity | 45 to 85% RH max. |
| Service life | Mechanically: 30000 operations(steps) min
Electrically: 20000 operations(steps) min |
| Weight(per unit) | Approx. 1.5g |
Description
KBP2 Switch

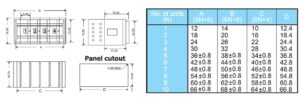

KBP2 Switch DIMENSIONS
END CAPS(1PAIR)
SPACERS
OUTPUT CODES
TERMINALS
