ES-TARA6060-01XX
| Part number | TARA6060-01XX | |
| Operating direction | Top push | |
| Dimensions | w×d= 6.0×6.0mm | |
| Height | 5mm | |
| Stem color | Black / Custom | |
| Operating force range | 0.98N / Custom | |
| Operating life (5mA 12V DC) | 50,000 cycles / Custom | |
| Travel | 0.25mm | |
| Operating temperature range | -30℃ to +85℃ | |
| Initial contact resistance | 100mΩ max. | |
| Insulation resistance | 100MΩ min. 100V DC for 1min. | |
| Voltage proof | 250V AC for 1 min. | |
| Rating (max.) | 50mA 12V DC | |
| Rating (min.) | 10µA 1V DC | |
| Minimum order unit | 1000 | |
| (pcs) | 1000 | |
Description
ES-TARA6060-01XX

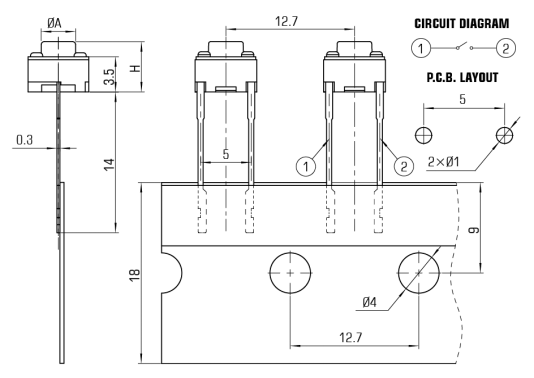

ES-TARA6060-01XX Dimensions

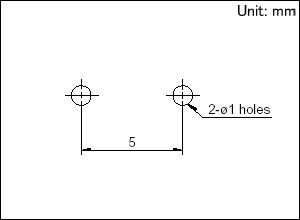

Mounting Hole Dimensions
Viewed from mounting face.
Circuit Diagram
