DS-09 DIP Switch
| Mechanical Life | 2000 operations per switch |
| Operation Force | ≤9.8N max. |
| Stroke | 2.0mm |
| Operation Temp | -20◦C to 70◦C |
| Electrical Life | 2000 Operations per switch-24 VDC, 25mA |
| Contact Resistance | 50mΩmax. at initial |
| Non-Switching Rating | 100mA, 50VDC |
| Switching Rating | 25mA, 24VDC |
| Circuit | Single pole single throw |
Description

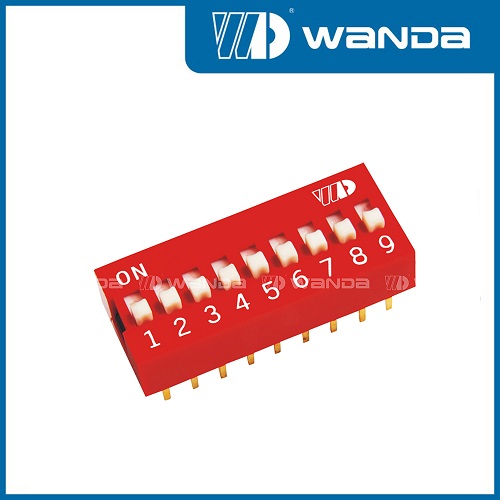

DS-09 Dip Switch

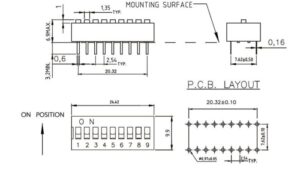

DS-09 Dip Switch Dimension
Wanda is a manufacturer of switch components for industrial automation for over 30 years.
Wanda offers different types of switch like DIP Switches , Rotary Switches , Mini Rotary Switches , Mini Slide Switches and Coded Switches.
